Smart Retail Spaces & Modular Pop-Up Shop Solutions

Launching a high-impact retail presence, designer boutique, or consumer experience center requires flexible, eye-catching spaces that activate foot traffic immediately. As recognized container showroom builders in Eastern India, PortaSpaze manufactures contemporary, architectural-grade prefabricated retail shop container units engineered to elevate modern brand identities while minimizing traditional civil lease commitments.

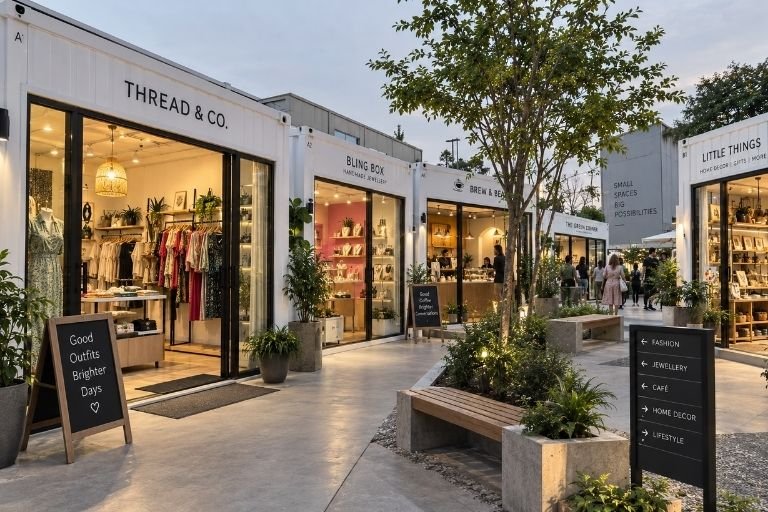

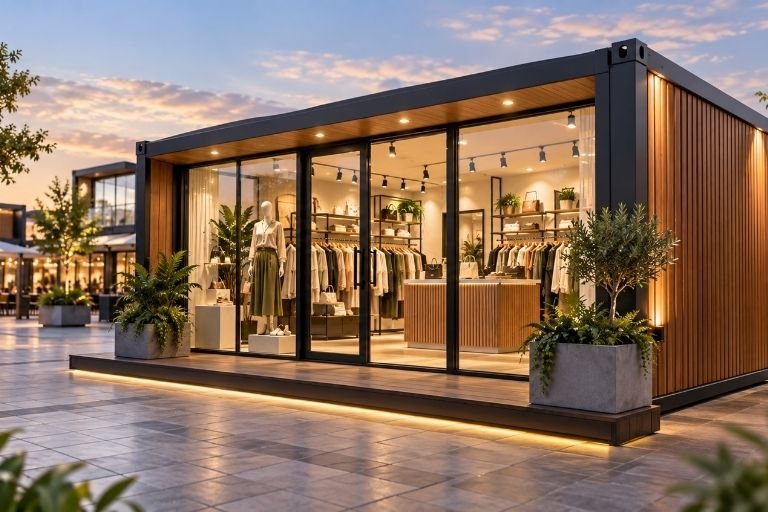

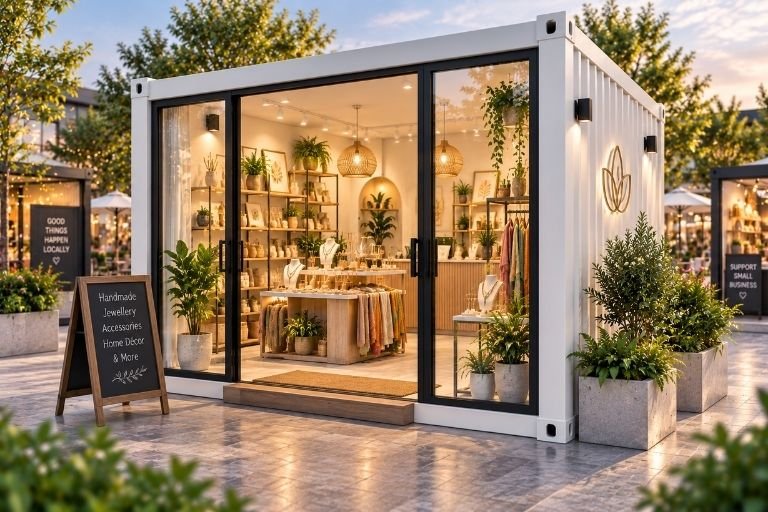

Whether you are establishing a stylish modular pop-up shop container in Kolkata’s premier retail districts, deploying a durable portable commercial retail unit along the NH6 commercial corridor, or building a bespoke prefabricated boutique container across Durgapur, Haldia, Dankuni, or Uluberia, our smart retail structures provide turnkey commercial capability with complete brand customizability.

Architectural Elegance, Retail Security, and Swift Deployment

High-Visibility Retail Display Windows

Integrated with heavy-duty aluminium or UPVC storefront glazing and toughened safety glass, allowing seamless product merchandising and expansive natural lighting to draw customer engagement.

Robust Structural Steel Security

Built with welded 1.2 mm corrugated Mild Steel (M.S.) side paneling on heavy Square Hollow Section (SHS) frames, reinforced by secure rolling shutters or solid steel locking doors to safeguard merchandise when closed.

Superior Customer Comfort & Acoustic Lining

Insulated with high-density 25 mm Glasswool and finished with elegant 4 mm Aluminium Composite Panels (ACP) or decorative laminate boards, maintaining a cool, quiet, and premium shopping environment during extreme summer weather.

Turnkey Display Lighting & POS Electrification

Fully pre-wired with concealed fire-retardant copper conduits, multi-point track spotlights, ambient ceiling LED lights, dedicated circuits for POS/billing hardware, and pre-fitted split AC provisions.

Technical Specifications (Smart Retail Space Build)

Underframe Substructure

60 mm x 60 mm Square Hollow Sections (SHS) treated with anti-corrosive primer coating

Corner Posts & Top Frame

Corner posts: 72 mm x 72 mm square pipe (up to 20 ft units) / 90 mm x 90 mm (30 ft to 40 ft showrooms). Top frame: 50 mm x 50 mm SHS.

Outer Armor (Walls & Roof)

1.2 mm thick corrugated Mild Steel (M.S.) sheets, continuously welded to guarantee a weather-tight, tamper-proof envelope

Insulation Layer

25 mm thick high-density Glasswool insulation core providing thermal protection and interior climate efficiency

Internal Wall & Ceiling Finish

4 mm washable, non-porous Aluminium Composite Panels (ACP) or optional food-grade SS 304 backsplashes

Subfloor & Retail Decking

18 mm heavy Cement Fiber Board underlayment finished with 1 mm thick premium commercial-grade PVC vinyl or luxury tile flooring

Storefront Access & Glazing

Aluminium framed toughened glass sliding/swing door, floor-to-ceiling display windows, and optional motorized security shutter

Ventilation & Climate Ports

Standard 3 ft x 3 ft sliding side windows with grills, high-speed ceiling cage fan, and reinforced split AC installation provision

Electrical Configuration

Concealed fire-retardant wiring (Finolex, Polycab, or Reo), retail track lighting, LED tube lights, 6A/16A utility sockets, and external bulkhead porch light

Surface Coating & Paint

Industrial Red Oxide primer undercoat followed by dual coats of synthetic enamel paint in Feroza Blue, graphite grey, or custom brand themes

Smart Retail Configurations & Variants

Compact Pop-Up Kiosk

10 ft x 10 ft / 15 ft x 10 ft (Height: 8.5 ft): Built on 60x60 mm SHS with 72x72 mm corner posts. Configured with a front glass display, LED track lighting, 1 AC cutout, and billing counter space. Ideal for eyewear boutiques, tech accessory kiosks, and cosmetic brand activations.

Standard Retail Boutique

20 ft x 10 ft (Height: 8.5 ft): Built on 60x60 mm SHS with 72x72 mm corner posts. Features large glass display fronts, 3 LED tube lights, 2 ceiling cage fans, 1 AC provision, and dual 6A charging points. Perfect for apparel boutiques, footwear outlets, and artisanal retail stores.

Flagship Experience Showroom

30 ft x 10 ft / 40 ft x 10 ft (Height: 8.5 ft): Heavy-duty 72x72 mm SHS base framing with 90x90 mm corner pillars. Includes 4 windows or full panoramic side glazing, 5 LED lights, 3 cage fans, and dual AC ports. Engineered for electronic experience zones, luxury showrooms, and automotive merchandise hubs.

Frequently Asked Questions

How secure is a prefabricated retail shop container against break-ins?

PortaSpaze retail units feature an outer shell of 1.2 mm continuously welded corrugated Mild Steel and heavy tubular framework. For storefront protection, we integrate heavy-duty mechanical locking doors, internal security grills for side windows, and optional lockable exterior rolling shutters that roll down over the glass display when the store is closed.

Can the retail unit be relocated if market dynamics or foot traffic change?

Yes. Designed as a self-supporting, rigid steel structure with integrated lifting corner posts, the unit can be hoisted onto a flatbed trailer via crane and moved to a new event, market square, or retail cluster with zero structural degradation or civil demolition costs.

What customization options are available for branding and interior displays?

We provide full turnkey personalization, including custom exterior corporate paint schemes, custom front fascia boards for illuminated channel lettering, directional ceiling spotlighting, interior display partition walls, and branded wood-grain flooring finishes.

Build Your Smart Modular Retail Experience Today

Capture more foot traffic and launch your storefront faster with bespoke, relocatable, and high-visibility container showrooms engineered for commercial success across Eastern India.
